You Professional Dryer Suppliers！
Yijia Hardware Industrial Supermarket, as an innovative leader in the industry, is committed to providing one-stop hardware procurement solutions for various industrial enterprises, construction projects, and DIY enthusiasts. Our large-scale 4,000-square-metre supermarket showcases more than 20,000 hardware products from world-renowned brands as well as high-quality local manufacturers.
-
![Refrigeration Dryer Room Temperature Type]()
Refrigeration Dryer Room Temperature TypeRefrigeration dryer room temperature type Refrigeration dryer (room temperature type) is one of the most common types of refrigeration dryers, mainly used to process compressed air at room temperature (the inlet air temperature is...view more -

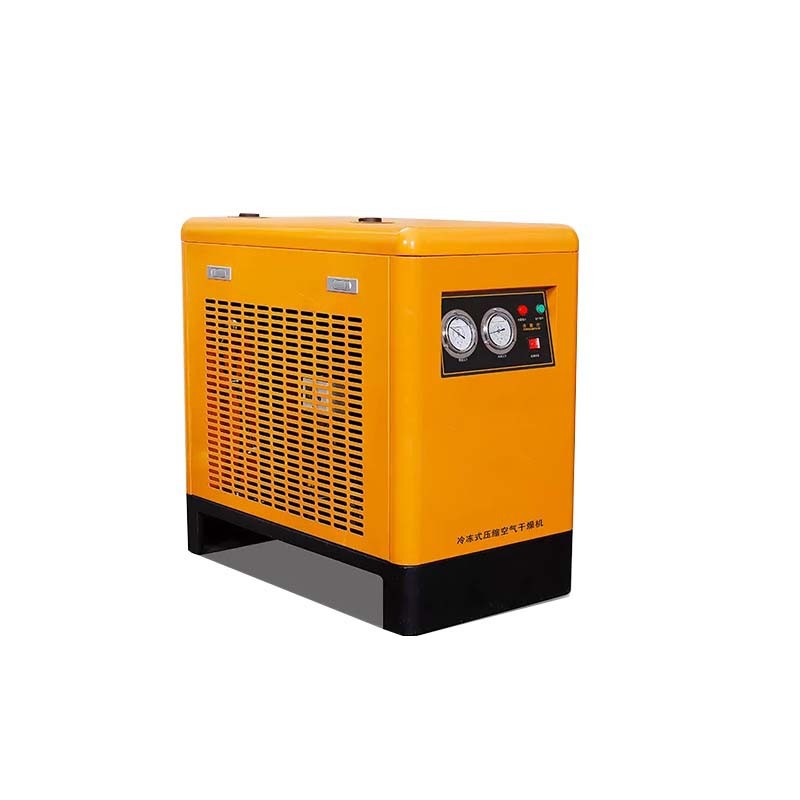

![Refrigeration Dryer]()
Refrigeration DryerHow it works The heat exchange between the refrigerant and the compressed air is used to reduce the temperature of the compressed air to the dew point temperature in the range of 2~10 °C, so that most of the water vapor is cooled...view more
Why Choose Us
Professional Team
We terms of service, we have a team of professionally trained staff who not only have deep knowledge of hardware products, but also can provide accurate product recommendations and technical support according to the specific needs of customers.
Diversified Demand
We From basic screws, nuts, tools and measuring tools, to high-end industrial equipment and electrical components, we have everything to meet the diverse needs of different customers at different project stages.
Convenient Shopping
We provide convenient online and offline shopping channels, the online platform is easy to operate, customers can browse and place orders anytime and anywhere.
Production Market
Yijia hardware has a wide range of mechanical and electrical sales, with footprints in Europe, America, Asia, Africa, Latin America and other countries.
A dryer (or drier) is a machine or apparatus used to remove moisture. It may be a small laboratory oven taking a few grams of moist material or a large industrial unit handling tonnes of wet feed per hour. The haveLow initial capital cost, Relatively low operating cost, Low maintenance costs .
Product Specification
We offer the following Specifications：
|
Voltage |
380 V |
||||||
|
Brand |
Boss |
||||||
|
Maximum Flow Rate |
34-3400 m cube/hr |
||||||
|
Frequency |
50 Hz |
||||||
|
Maximum Pressure |
12.5-16 BAR |
||||||
|
Dryer Horse Power |
15 HP |
||||||
|
Warranty |
12 months |
||||||
|
Minimum Output Dew Point |
-30 C |
||||||
|
Drying Capacity |
20-2000 |
||||||
|
Nominal Capacity |
Max Pressure Bar (g) |
Supply Voltage |
Air Connection |
Rated Power (kW) |
|||
|
Model CFM |
m3/hr |
Air cooled |
Water cooled |
||||
|
20 |
34 |
16/40 |
220 |
1/2" BSP (F) |
0.21 |
-- |
|
|
40 |
68 |
16/40 |
220 |
1/2" BSP (F) |
0.36 |
-- |
|
|
60 |
102 |
16/40 |
220 |
1" BSP (F) |
0.45 |
-- |
|
|
80 |
136 |
16/40 |
220 |
1" BSP (F) |
0.60 |
-- |
|
|
100 |
170 |
16/40 |
220 |
1.1/2" BSP (F) |
0.67 |
-- |
|
|
150 |
255 |
16/40 |
220 |
1.1/2" BSP (F) |
1 |
-- |
|
|
200 |
340 |
16/40 |
220 |
1.1/2" BSP (F) |
1.40 |
-- |
|
|
250 |
425 |
16/40 |
220 |
2" BSP (F) |
1.70 |
-- |
|
|
300 |
510 |
16/40 |
220 |
2" BSP (F) |
1.80 |
-- |
|
|
400 |
680 |
16/40 |
220 |
2" BSP (F) |
2.40 |
1.80 |
|
|
500 |
850 |
16/40 |
415 |
3" NB ASME Flg |
2.70 |
2.30 |
|
|
600 |
1020 |
16/40 |
415 |
3" NB ASME Flg |
3.40 |
2.70 |
|
|
750 |
1275 |
16/40 |
415 |
3" NB ASME Flg |
4.20 |
3.00 |
|
|
1000 |
1700 |
16/40 |
415 |
4" NB ASME Flg |
5.30 |
4.40 |
|
|
1250 |
2125 |
16 |
415 |
4" NB ASME Flg |
7.20 |
5.50 |
|
Application of Refrigeration Dryer
Technical requirements: Compressed air must comply with ISO 8573-1 Class 1 (solid particles ≤ 0.1μm, oil content ≤ 0.01mg/m³, pressure dew point ≤ -40℃), but the refrigerated dryer combined with precision filtration (0.01μm filter element) can meet Class 4 requirements and is used for bottle blowing, filling and other links.
Key role: Humid air can cause rust on metal surfaces and agglomeration of paint particles. The refrigerated dryer controls the pressure dew point below 7°C, ensuring that the moisture content of the spray air is ≤5g/Nm³, reducing coating bubble defects (defect rate drops from 12% to 3%).
Precision requirements: Semiconductor wafer manufacturing requires air dew point ≤-20°C (normal pressure), but when the refrigerated dryer is used in series with the adsorption dryer, the cost can be reduced by 40% (compared with the pure adsorption solution), while meeting the Class 2 standard (pressure dew point ≤-40°C).
The thermal sensitivity of the material fixes the temperature-time limits for safe drying. For many materials, the rate of thermal degradation follows an Arrhenius relationship, and the maximum permissible working temperature falls exponentially with an increase in holding time. Polymers may be safely dried in a fluidized-bed dryer, for example, in which the dwell-time of the particles may be of the order of 10 to 20 min while in a static bed, with its inherently slower drying rates, drying conditions would have to be very mild and the associated dryer large and costly. Spray dryers for the manufacture of milk products can be operated with an air-inlet temperature of the order of 200°C since the residence time of particles in the drying chamber is very short, of the order of 20s or less. Nevertheless, it is sometimes necessary to dry thermolabile materials under vacuum to reduce process temperatures. Freeze-drying can only be undertaken below the triple-point pressure of 630 Pa. Sensitive pharmaceutical products are dried in agitated vacuum pans. Degrade of timber for high-quality end use can be reduced by seasoning under vacuum, rather than by a lengthier kiln-drying schedule at atmospheric pressure.
Components of Refrigeration Dryer
Refrigeration compressor:
It is the heart of the refrigeration system, which compresses the refrigerant gas at low temperature and low pressure into the refrigerant gas at high temperature and high pressure, and finally discharges it from the exhaust pipe.
Condenser
The function is to cool the high-pressure, superheated refrigerant vapor discharged from the refrigerant compressor into a liquid refrigerant, and its heat is taken away by the cooling water or cooling air, so that the refrigeration process can be carried out continuously.
Evaporator
It is the main heat exchange part of the refrigeration dryer, the compressed air is forced to cool in the evaporator, and the water in it is condensed into liquid water and discharged out of the machine. The low-pressure refrigerant liquid is transformed into low-pressure refrigerant vapor in the evaporator, which absorbs the surrounding heat during the phase change process and cools the compressed air.
Expansion valve
The thermodynamic expansion valve (capillary) is the throttling mechanism of the refrigeration system. In the refrigeration dryer, the supply of the evaporator refrigerant and its regulator are realized by means of a throttling mechanism. The throttling mechanism allows the refrigeration to enter the evaporator from the high-temperature and high-pressure liquid.
Packaging & Shipping
FAQ
As one of the leading dryer suppliers in China, we warmly welcome you to wholesale dryer made in China here from our factory. All customized tools are with high quality and competitive price. Contact us for free sample.
