Diamond Drilling Machine is a type of non-percussive core drilling that uses a diamond drill bit mounted on a rotary drill in order to precisely cut through hard materials. Diamond drilling is pretty straightforward. It uses a diamond-impregnated drill bit to cut through rock and produce a solid core sample.
Product Specification
We offer the following Specifications：
|
Motor |
||
|
Power source |
Battery |
Battery |
|
Battery eco system |
BLi-X |
BLi-X |
|
Equipment |
||
|
Drill bit diameter handheld, max |
75 mm |
75 mm |
|
Drill bit diameter with stand, max |
100 mm |
100 mm |
|
Recommended drill bit diameter, min |
15 mm |
15 mm |
|
Coolant |
Wet /dry |
Wet /dry |
|
Transmission |
||
|
Number of gearbox speeds |
2 |
2 |
|
Numbers of electronical gearbox speeds |
2 |
2 |
|
Spindle speed unloaded gear 1 |
1,400 rpm |
1,400 rpm |
|
Spindle speed unloaded gear 2 |
4,450 rpm |
4,450 rpm |
|
Product data |
||
|
Water connector |
Gardena Male |
Gardena Male |
|
Water pressure, max |
3 bar |
3 bar |
|
Mounting collar |
60 mm |
60 mm |
|
Spindle thread, inner |
G 1/2" |
G 1/2" |
|
Spindle thread, outer |
1 1/4" 7 UNC |
1 1/4" 7 UNC |
|
Dimensions |
||
|
Product size length |
440 mm |
440 mm |
|
Product size width |
110 mm |
110 mm |
|
Product size height |
275 mm |
275 mm |
|
Weight (complete product w/o side packed articles) |
4.9 kg |
4.9 kg |
|
Packaging length |
600 mm |
600 mm |
|
Packaging width |
220 mm |
220 mm |
|
Packaging height |
400 mm |
400 mm |
|
Article gross weight |
12,300 g |
17,690 g |
|
Sound and noise |
||
|
Sound power level, guaranteed (LWA) |
97 dB(A) |
97 dB(A) |
|
Sound power level, measured |
86 dB(A) |
86 dB(A) |
|
Sound pressure level at operators ear |
86 dB(A) |
86 dB(A) |
Types of Diamond Drilling Machine
We offer the following Product introduce:

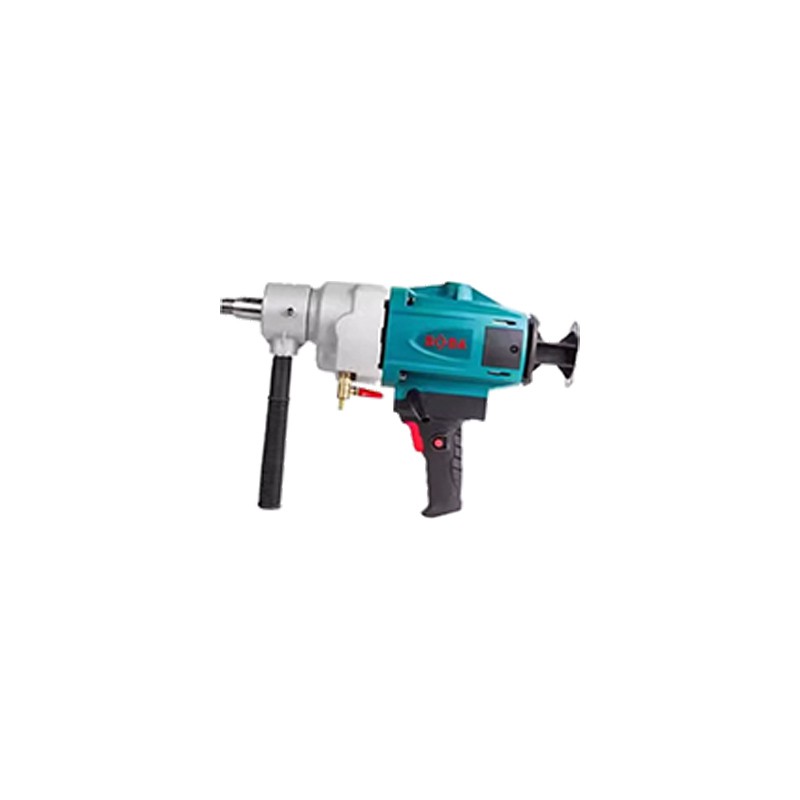

Hand-held Drilling Machine
The working performance of the electric handheld drilling machine is powered by AC power supply or DC battery, such as the common hand drill in daily life, which is equipped with a single-phase motor inside, relying on rotation to drill, which has the advantages of flexibility and convenience, small and affordable, easy to carry, etc., and is widely used in metal component processing, wood processing, construction installation and maintenance, plastic processing and other fields.

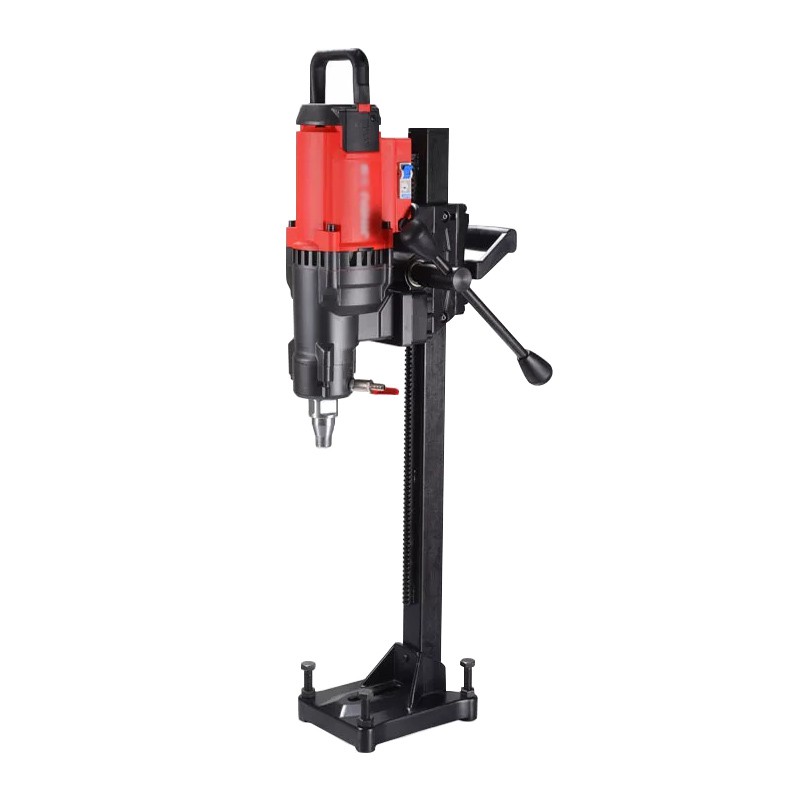

Benchtop Drill
The working principle of the desktop drilling machine is that the motor is driven by the V-belt to rotate the pulley, and then the spindle obtains different speeds to realize the rotary movement of the drill bit. At the same time, the operator controls the spindle to move up and down by turning the feed handle, so that the drill bit feeds the workpiece, so as to drill holes in the workpiece that needs to be drilled.The advantages of the desktop drilling machine, the desktop drilling machine is small in size, covers a relatively small area, can be placed on the operation table for use, flexible and convenient, convenient operation, easy for users to get started.
Construction and Renovation
Diamond drilling is essential in the construction industry for creating precise openings for plumbing, electrical and HVAC systems. Its accuracy ensures minimal impact on surrounding structures, making it ideal for renovations and retrofitting projects.
Mining and Geological Sampling
This method is crucial for extracting core samples in the mining sector. It allows geologists to analyse the underground layers, helping in the exploration of minerals and resources with minimal environmental and structural disruption.
Infrastructure Development
Diamond drilling plays a vital role in developing infrastructure, particularly in constructing bridges, tunnels, and roads. The precisions helps to preserve structural integrity and longevity of these projects.
Installation of Utilities
Essential for the installation of utility lines, including water, gas, and telecommunications, it creates clean, precise holes that facilitate easy installation and maintenance of these services.
Demolition and Decommissioning
In demolition, diamond drilling is used to create precise cuts and holes, enabling controlled and safe dismantling of structures. It's particularly effective in preserving structural elements that need to remain intact during the demolition process.
Precautions
Site preparation
Securing the drilling area and setting up the rig in the correct position.
Installation of drill bit and rig
Attaching the appropriate diamond drill bit to the rig and ensure it is securely in place.
Cooling system setup
Connecting the water supply system to cool the drill bit and minimise dust.
Drilling
Activating the drill and apply steady pressure to cut through the material, adjusting the speed based on the material's hardness.
Core extraction
Extracting the core sample or completing the hole once the desired depth is reached.
Site cleanup
Disassembling the equipment and cleaning the area, ensuring no debris or hazards are left behind.
Packaging & Shipping
FAQ
As one of the leading diamond drilling machine suppliers in China, we warmly welcome you to wholesale diamond drilling machine made in China here from our factory. All customized tools are with high quality and competitive price. Contact us for free sample.
