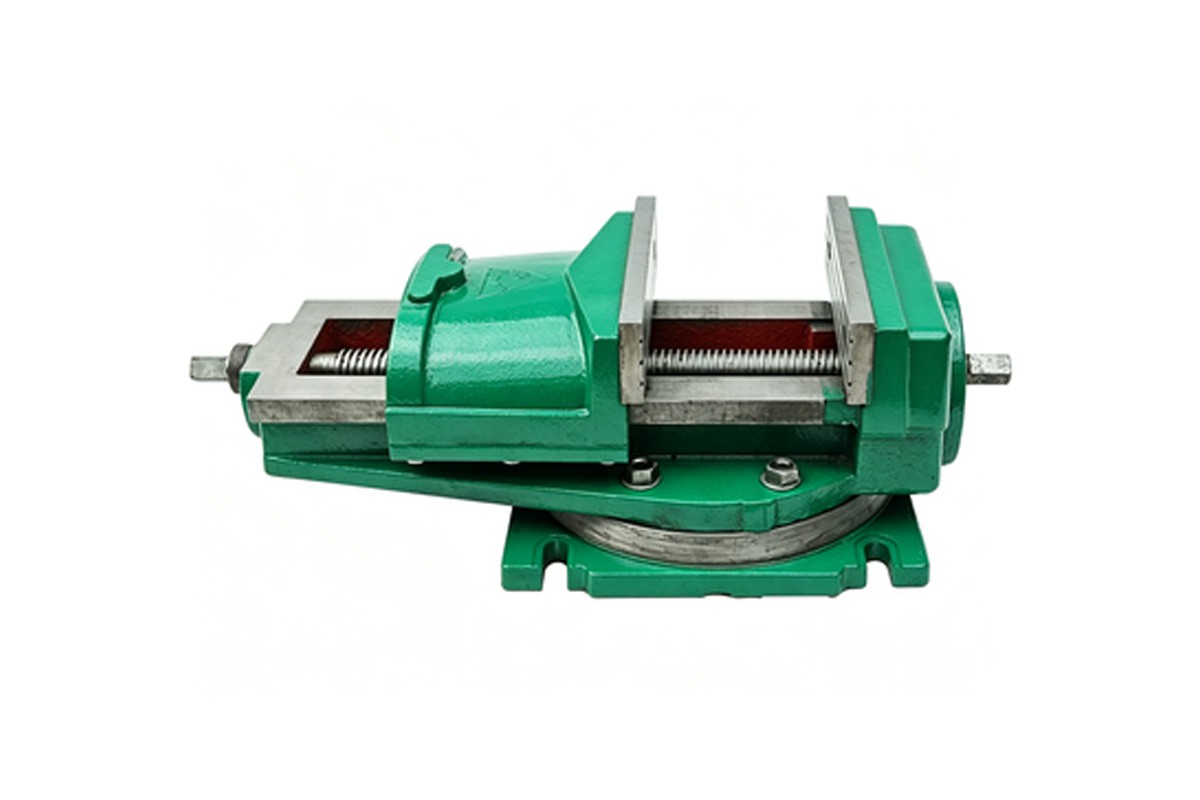

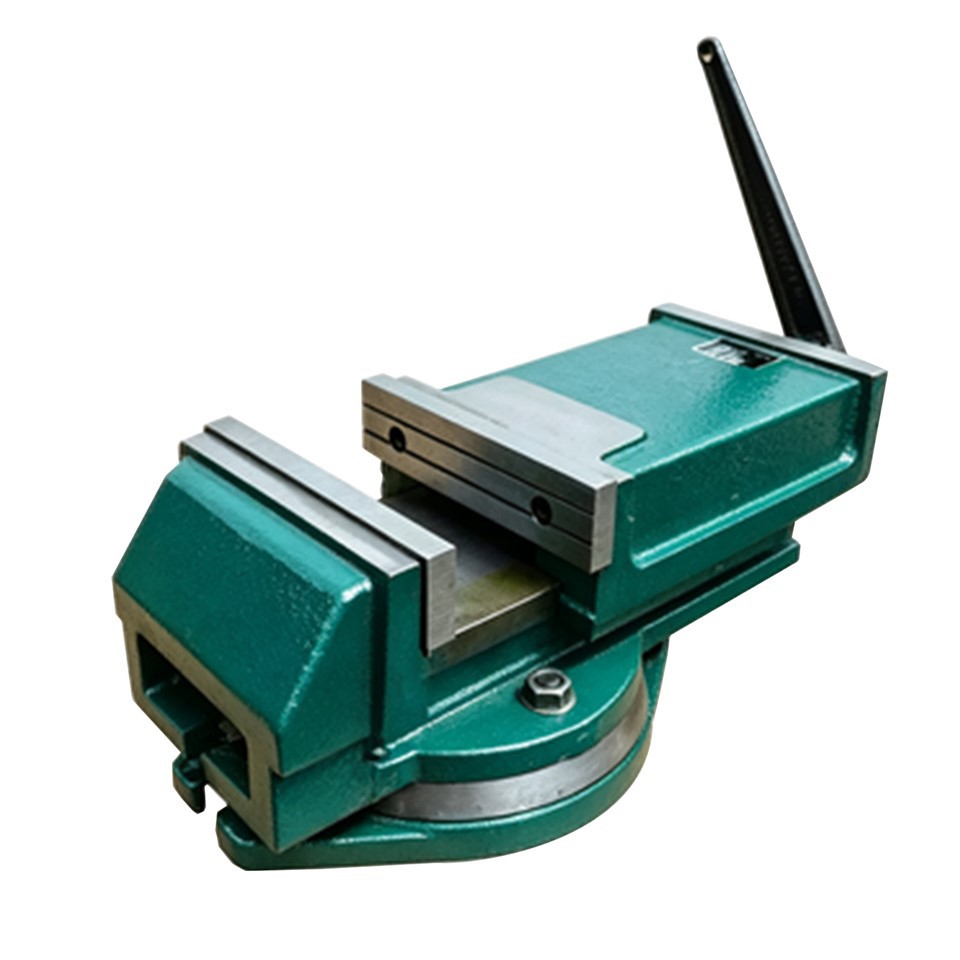

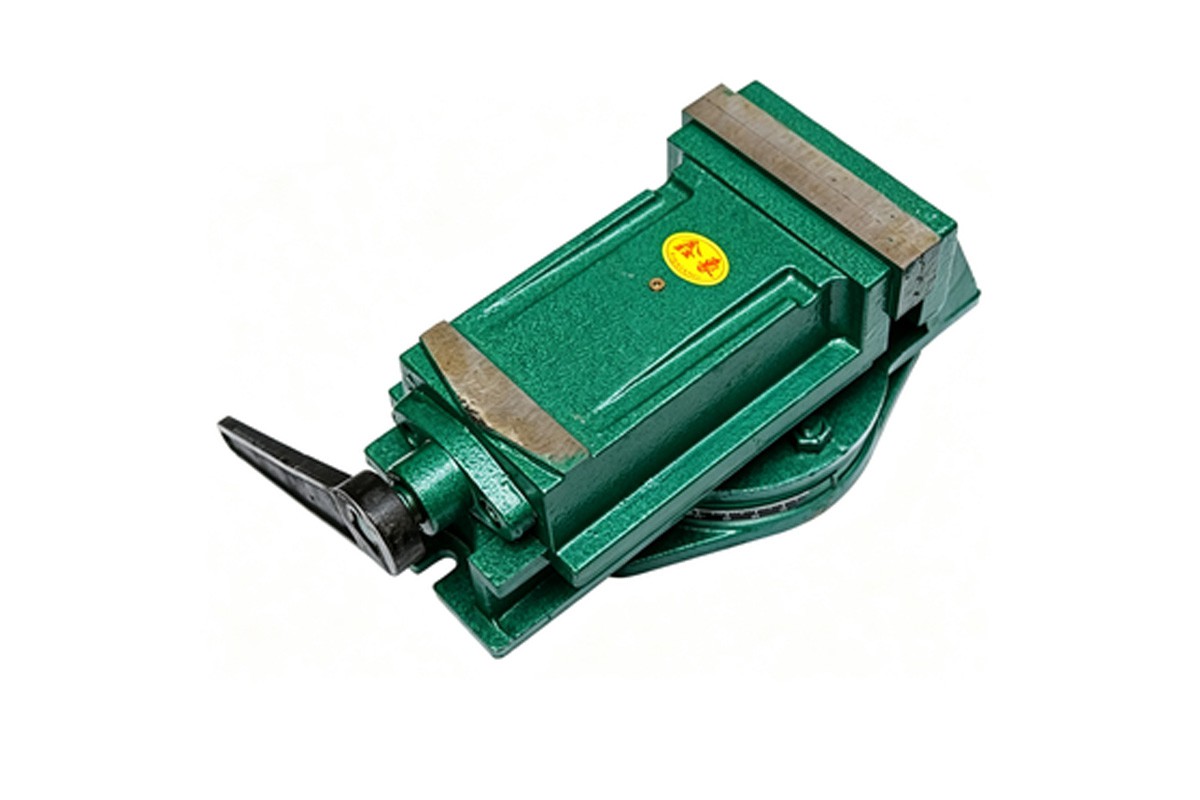

Central Mechanical Rotating Vise: The Core Clamping Solution for Precision Machining
As a key fixture in the field of machining, the central mechanical rotary vise has become the preferred equipment for buyers to optimize production processes due to its excellent precision and adaptability. This product adopts a modular design, with core attributes focusing on 'precise clamping and flexible rotation,' fully matching the high-efficiency production needs of modern workshops.
Core parameters
The jaw width covers specifications from 100-152mm, with a maximum opening of 150mm, and a repeat clamping accuracy of 0.005mm, meeting the stringent requirements of precision machining; the jaw material is made of SCM440 alloy steel, with a hardness of HRC53-55 after quenching, and the base is made of stainless steel (HRC50-52), ensuring long-term wear resistance. The clamping force can be adjusted within the range of 5-50kN, suitable for different workpiece types from aluminum profiles to high-carbon steel, with a 360° rotatable base positioning accuracy of ±5″, a free travel ≤1/3 turn, and fast operational response.
Product Features
The jaws support 180° quick rotation, paired with standard large and small jaws and optional V-shaped or curved jaw accessories, allowing flexible clamping of irregular and cylindrical workpieces; the built-in dust-proof plate design effectively prevents metal shavings from entering the rotating mechanism, extending service life; the base uses a cross-tooth structure, compatible with Erowa and System-3R systems as well as tandem vise bases, supporting multi-station combined installation, with a 400mm base able to accommodate 3-4 units side by side.
Core Advantage
First is precision stability, with micron-level repeat positioning accuracy reducing workpiece clamping errors and lowering the defect rate by more than 30%; second is efficiency improvement, allowing multi-surface machining in a single clamping, with changeover time reduced to within 10 seconds and production efficiency increased sixfold; third is full lifecycle cost optimization, with high-strength materials and dust-proof design reducing maintenance frequency, and strong compatibility of components lowering subsequent investment.
Products Description
This product features a right-angle clamping structure, which can reduce workpiece lifting. The single-sided jaw has a 1.5° swing design to enhance the clamping stability of non-parallel blanks; it supports both manual and automated linkage control, can be connected to CNC machines via M codes, and is compatible with unmanned production lines.
Application scenario
It is widely applied in the fields of precision mold processing, automotive parts manufacturing, aerospace component machining, and medical device production. It is especially suitable for scenarios requiring high-frequency rotary clamping, such as slow wire EDM, multi-face grinding, and five-axis machining, and serves as a versatile clamping solution for both mass production and customized processing. The central mechanical rotary vise not only improves machining accuracy but also reduces overall production costs through process optimization, creating long-term value for buyers.
FAQ
Q: How is the installation compatibility of the central mechanical rotary vise?
A: Supports Erowa, System-3R systems, and MKS bases, with standard mounting holes reserved at the bottom, which can be directly adapted to most CNC lathes, milling machines, and machining centers without additional modifications.
Q: Is the clamping jaw replaceable? What accessories are included as standard?
A: Supports quick change of jaws, comes standard with one set of large and small jaws, and optional special accessories such as soft jaws and V-shaped jaws to meet different workpiece clamping needs.
Q: How long is the product's lifespan?
A: Under normal usage conditions, the core components have a service life of 8-10 years. It is recommended to perform lubrication maintenance every 6 months to extend the equipment's service cycle.
Q: Does it support integration with automated production lines?
A: Fully supported, automatic clamping/releasing control can be achieved through M code, adapted to robot loading and unloading systems, meeting the requirements for 24-hour unmanned production.
Q: Can the clamping force adjustment range meet the processing of thin-walled parts?
A: Yes, the clamping force can be adjusted from 5-50kN. For thin-walled parts, a low clamping force mode can be set, combined with anti-deformation jaws to prevent damage to the workpiece during processing.
