| Rotate speed: | 7000r.p.m. | Bolt Capacity: | 32mm |

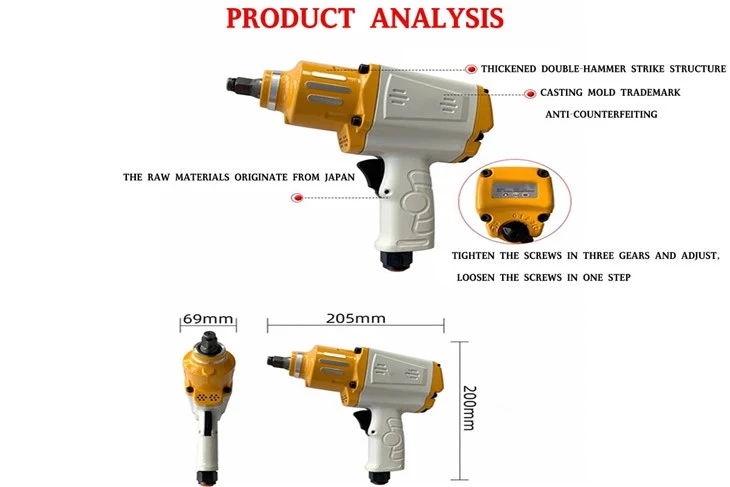

| Air Inlet Joints: | 1/4" | Strike Structure: | Double hammer |
| Square Head Specifications: | 1/2"(12.7mm) | Maximum torque: | 1200-2000Niu power |
| Inlet pressure: | 6-8KG/CM | Weight: | 2.9 kg: |
The working principle of the small air cannon is to use the compressed air output by the air compressor as power. When the compressed air enters the air cannon cylinder, it drives the impeller to rotate, and the impeller drives the interconnected striking mechanism to perform a hammer-like movement, generating rotational power, thereby achieving the function of tightening or removing screws.
The structural characteristics of small air cannon wrenches include single hammer with pin, double hammer with pin, three hammers with pin, four hammers with pin, double ring structure, single hammer without pin structure, etc. Small air cannons often use double ring structure, which generates large torque but has high requirements on materials; large air cannons generally use single hammer without pin structure, which is more ideal from the perspective of impact resistance.
Product features: Compared with large air cannons, it is smaller in size and lighter in weight, easy to carry and operate, and suitable for use in some places where space is relatively narrow or the weight of the tool is required. Although the torque is smaller than that of large air cannons, it can still provide sufficient torque for the removal and installation of some small bolts and nuts, and can meet most of the conventional fastening and disassembly needs in industries such as automobile maintenance, motorcycle repair, and furniture manufacturing.
Application areas: In the automobile maintenance industry, it can be used to remove and install bolts of automobile tires, tighten engine parts, etc.; in motorcycle repair, it is suitable for the disassembly and assembly of various parts; in the field of furniture manufacturing and decoration, it can be used for tightening screws when assembling furniture; in some small machinery manufacturing and maintenance, it can also play an important role, used to tighten and remove bolts and nuts of small machinery parts.
Working characteristics of small air cannons: moderate torque. Although its torque is smaller than that of large air cannon wrenches, the torque provided by small air cannon wrenches is sufficient for the removal and installation of most small bolts and nuts, and can meet the conventional tightening and disassembly needs in many industries such as automobile maintenance, motorcycle repair, furniture manufacturing, and electronic equipment assembly. Easy operation: users only need to connect it to the air source and operate it through simple switch control. There is no need for complicated operating procedures and professional skills training, which reduces the threshold for operators and improves work efficiency.
FAQ
Q: What torque bolt is a small air cannon suitable for?
A: It is usually suitable for small and medium-sized bolts, and the torque is mostly between 100 and 500 N・m, depending on the model.
Q: Does the small wind cannon need to be maintained frequently?
A: If necessary, check the air pipe and lubricate the motor regularly to avoid dust ingress.
Q: Is the small air cannon related to the pressure of the air supply?
A: Relevantly, it generally requires an air pressure of 0.6-0.8MPa, and insufficient pressure will affect the torque.
